BEF

Plate Drilling Machines

BEF

Plate Drilling Machines

Machine Features

Plate Drilling Machines

BEF

Advanced solution at steel construction sector once again from BENDMAK…
High speed and high processing performance with BEF up to 1000x1500 mm materials.

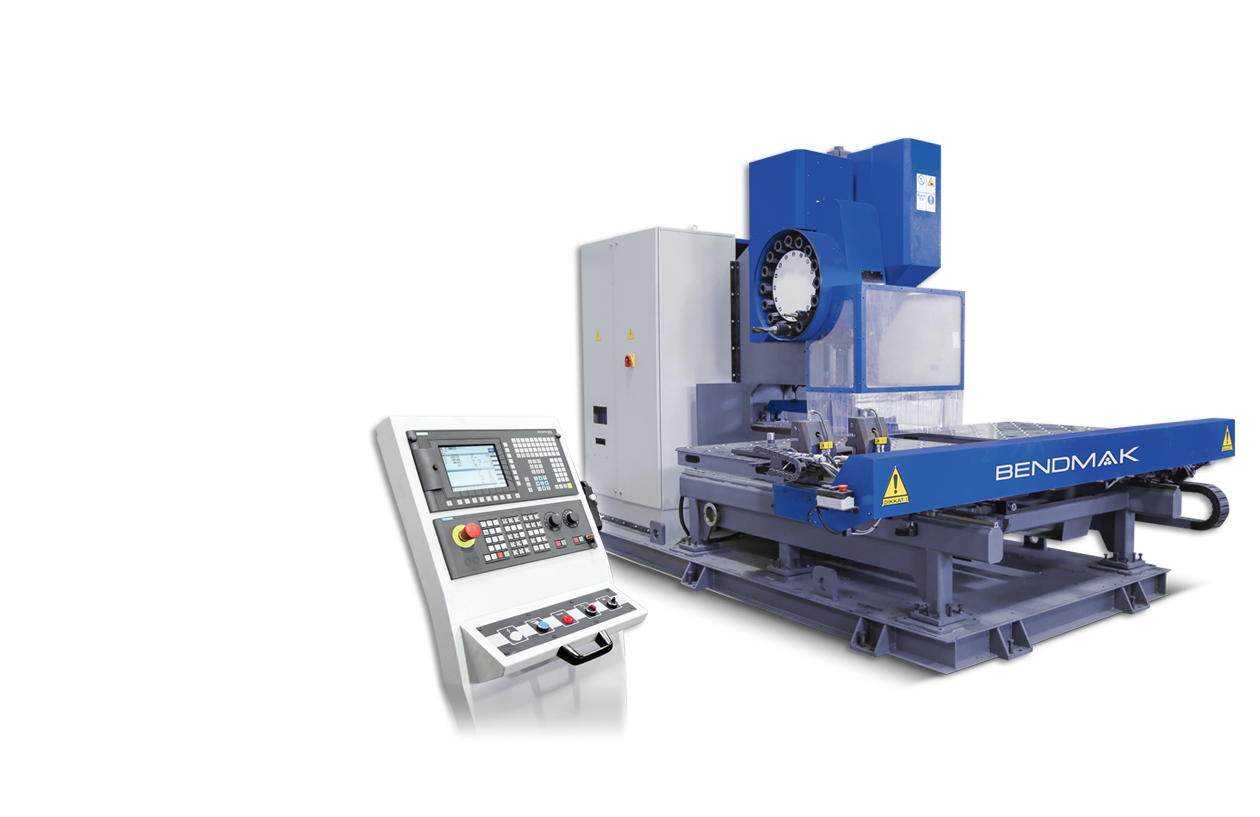

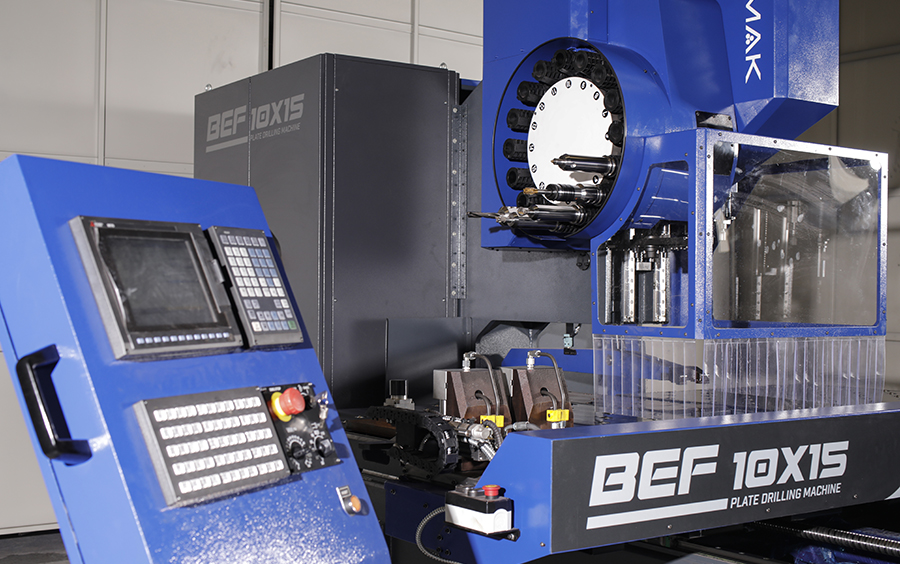

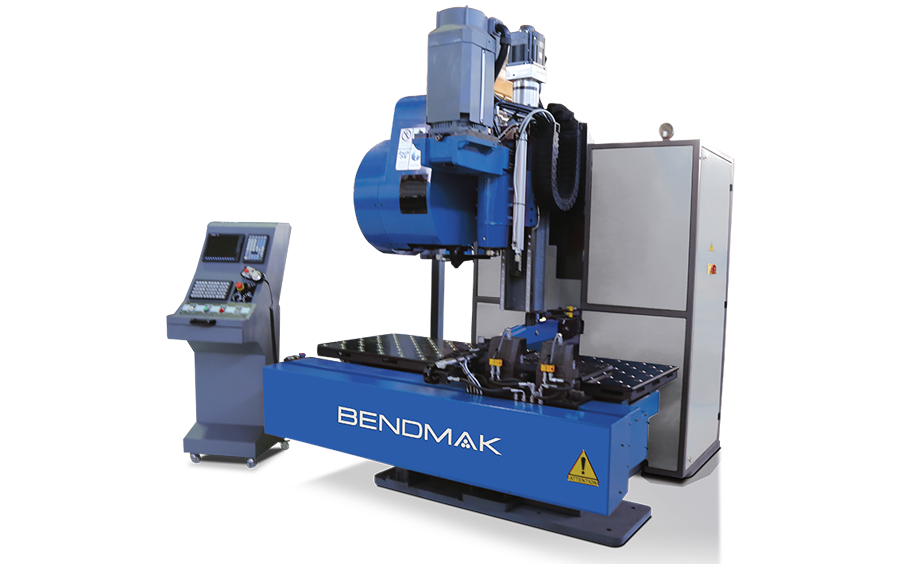

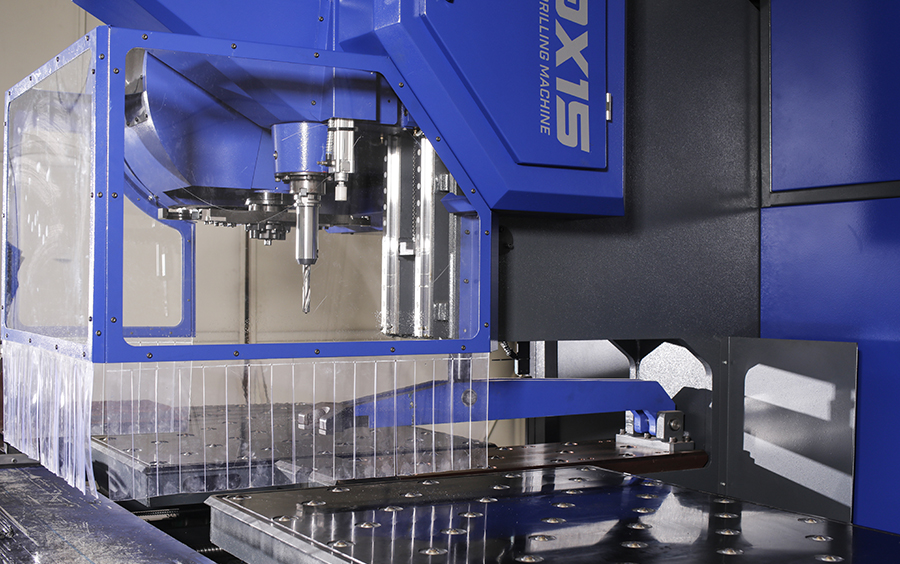

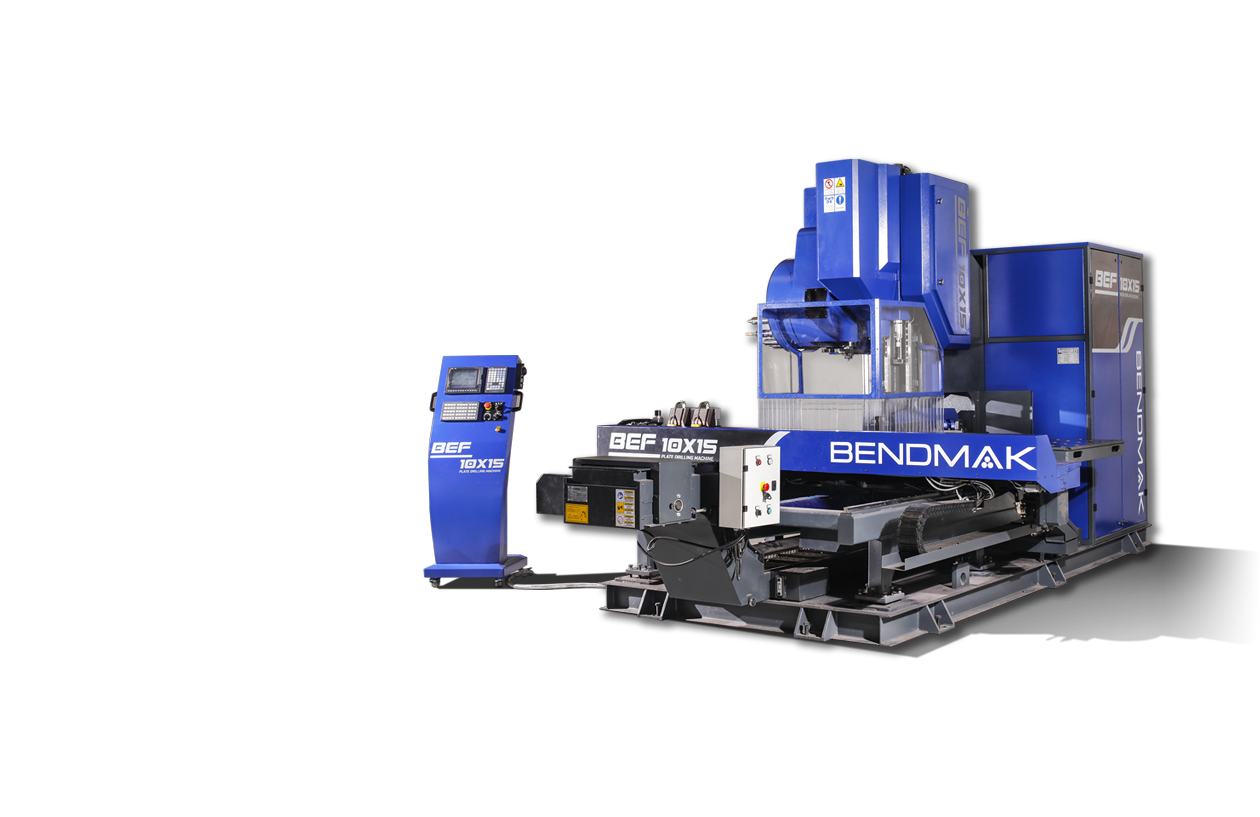

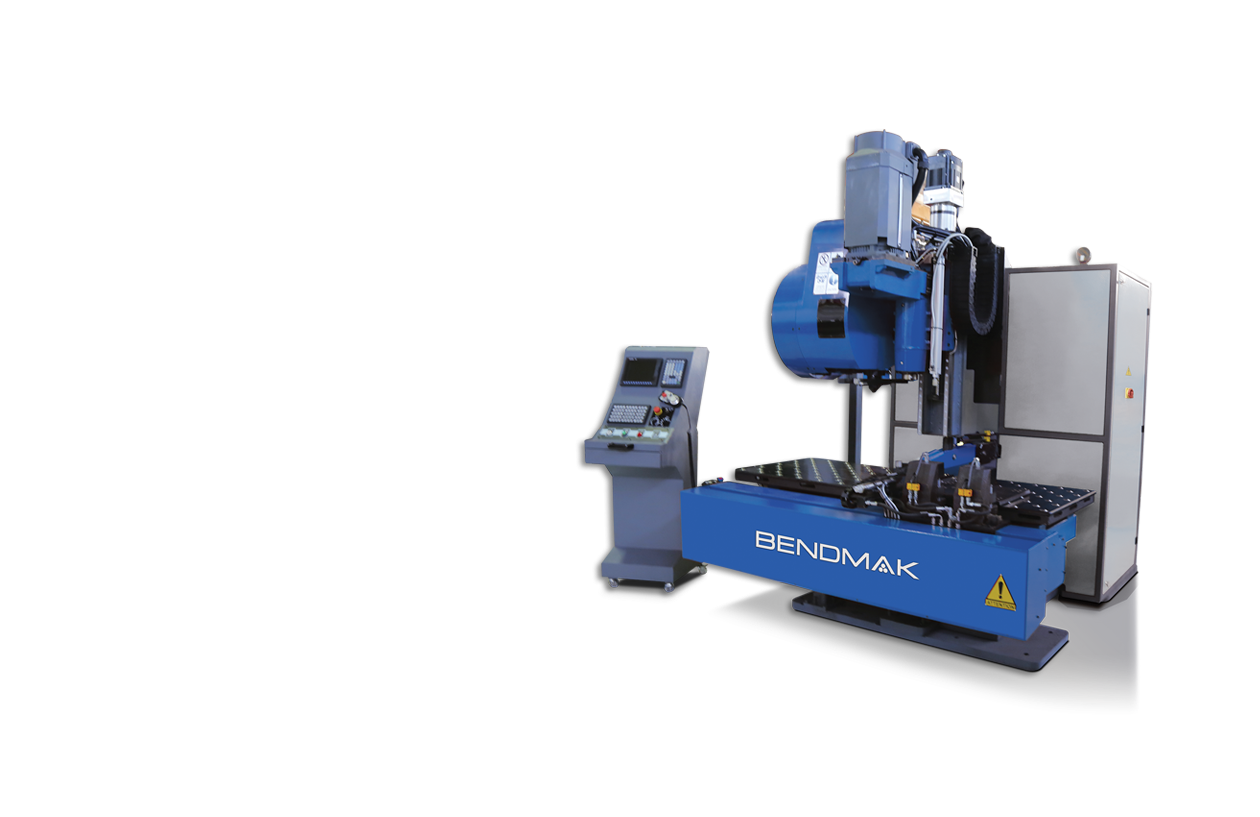

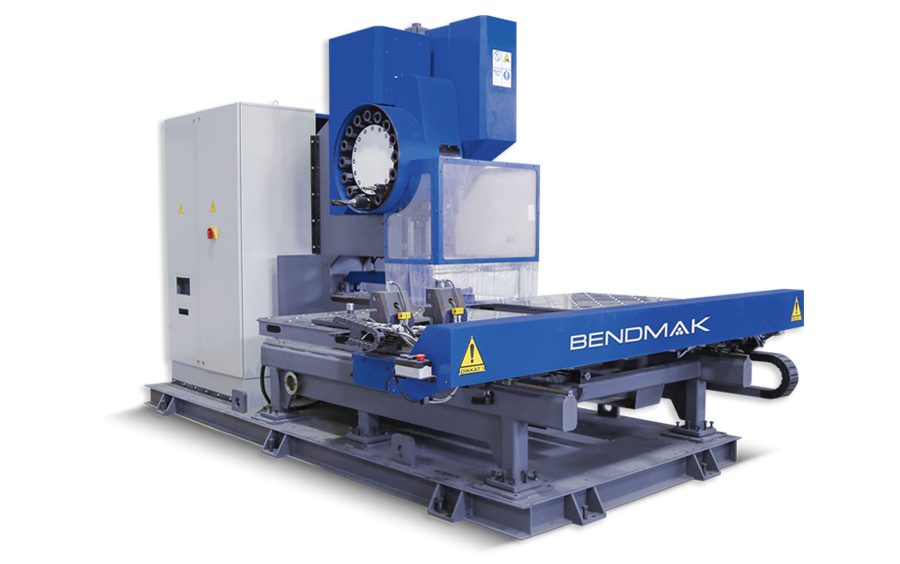

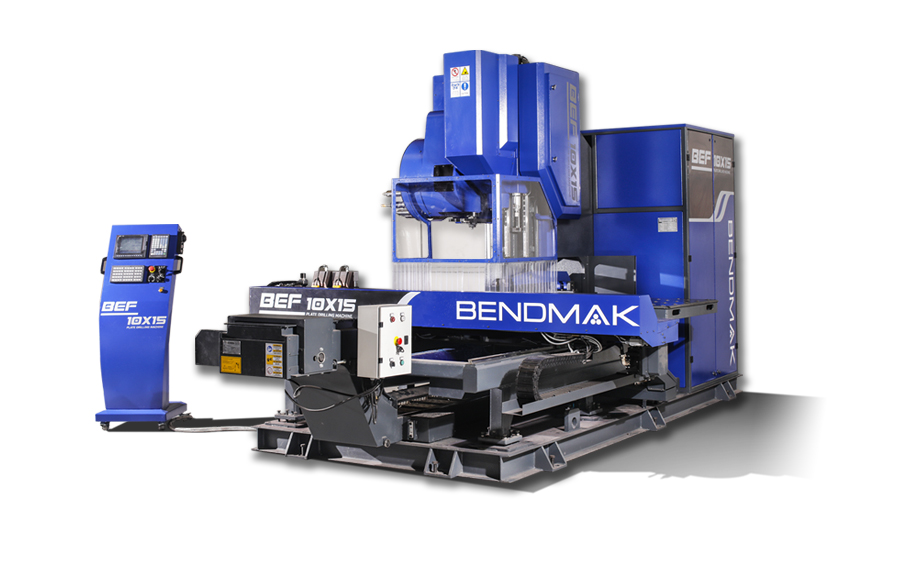

The state of art BEF Flange Drilling Machine is designed for drilling, marking and tapping plates,
reflecting more than 50 years of experience of BENDMAK.
All movements are made by CNC system.
Main body is welded steel construction and stress relieved.
BEF CNC Flange Drilling Machine is able to drill 6 to 80 mm thickness within its own working area.

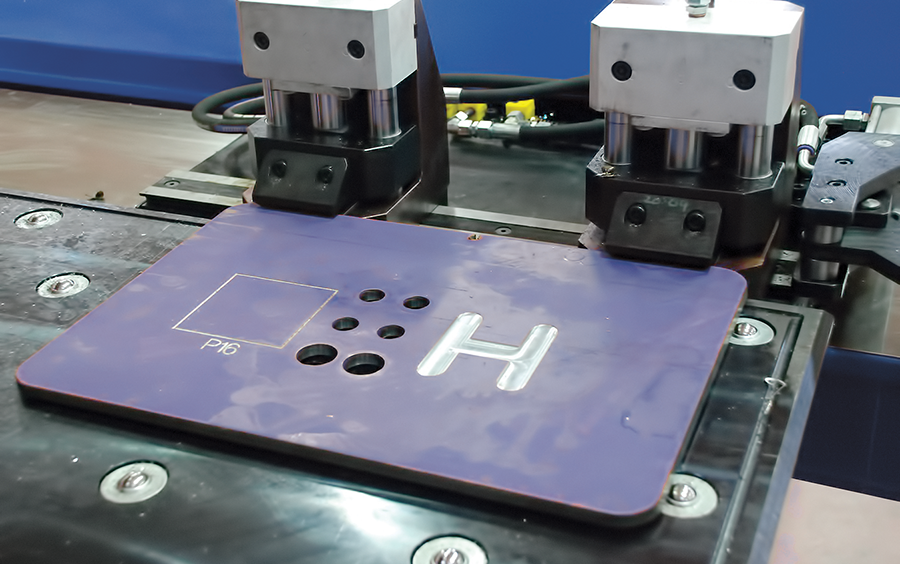

Material is driven on the table with balls by fixing it with hydraulic clamping jaws. Material is positioned
to the desired coordinates for drilling/marking/tapping by CNC program and then operation starts.

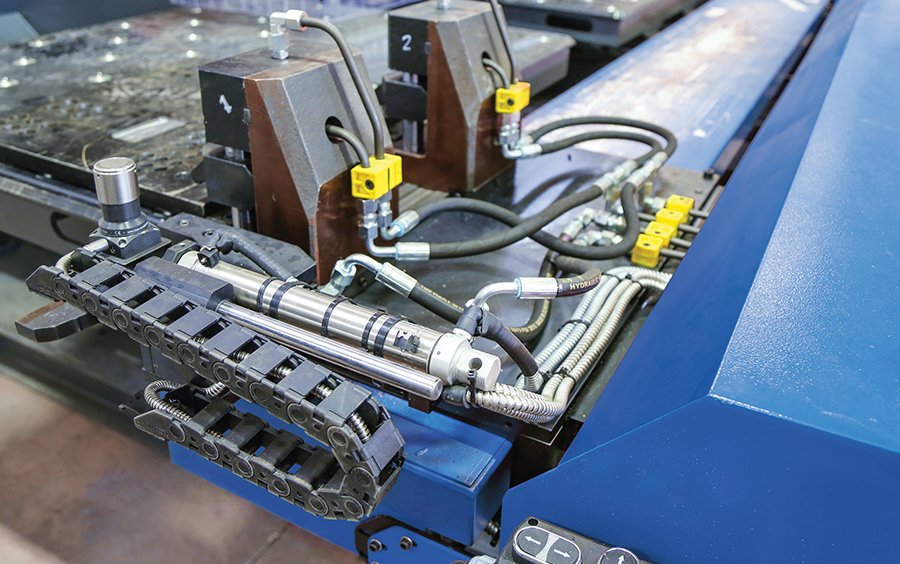

Hardened hydraulic jaws with piston helps to fix material to prevent faults. BEF Flange Drilling Machine

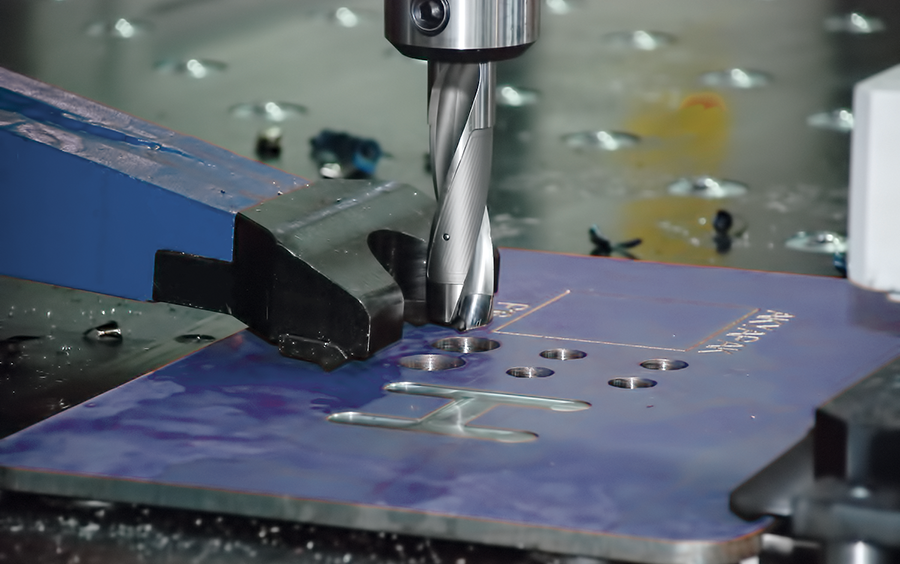

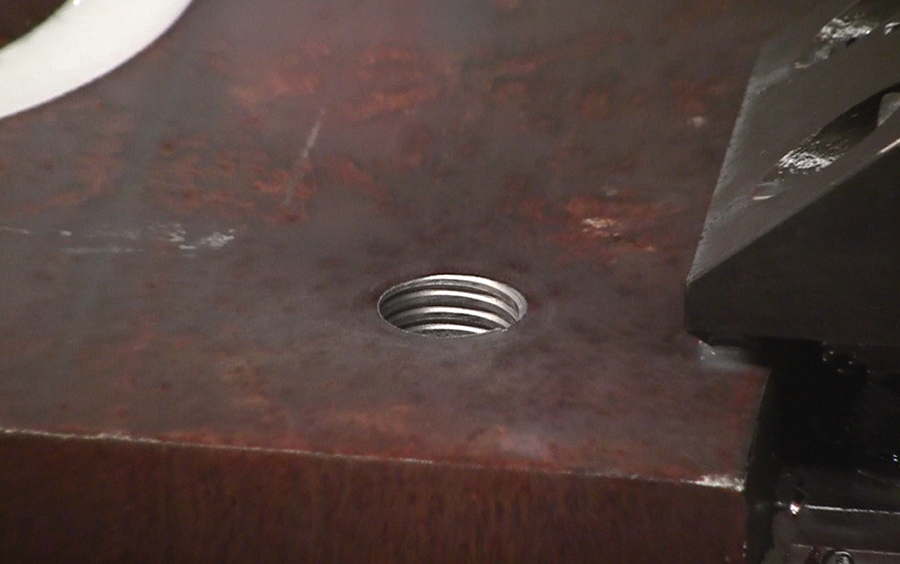

is able to drill, tab, mill, mark with scribing, chip remover and mark with dot.(optional).

BEF Application Areas

Steel Construction

Electrical Power Erection

Shipyards

Silos
